FNIRSI USB 4-28V 7A LCD USB Tester A&C Multimeter Current and Voltage Power Tester with Bluetooth, Fast Charge Detection, Shooting Capability, Ripple Measurement, PD2.0/PD3.0, QC2.0/QC3.0

---

---

− +

Add to cart

---

Type	Programmming Tools
Location	null
SKU	121919

---

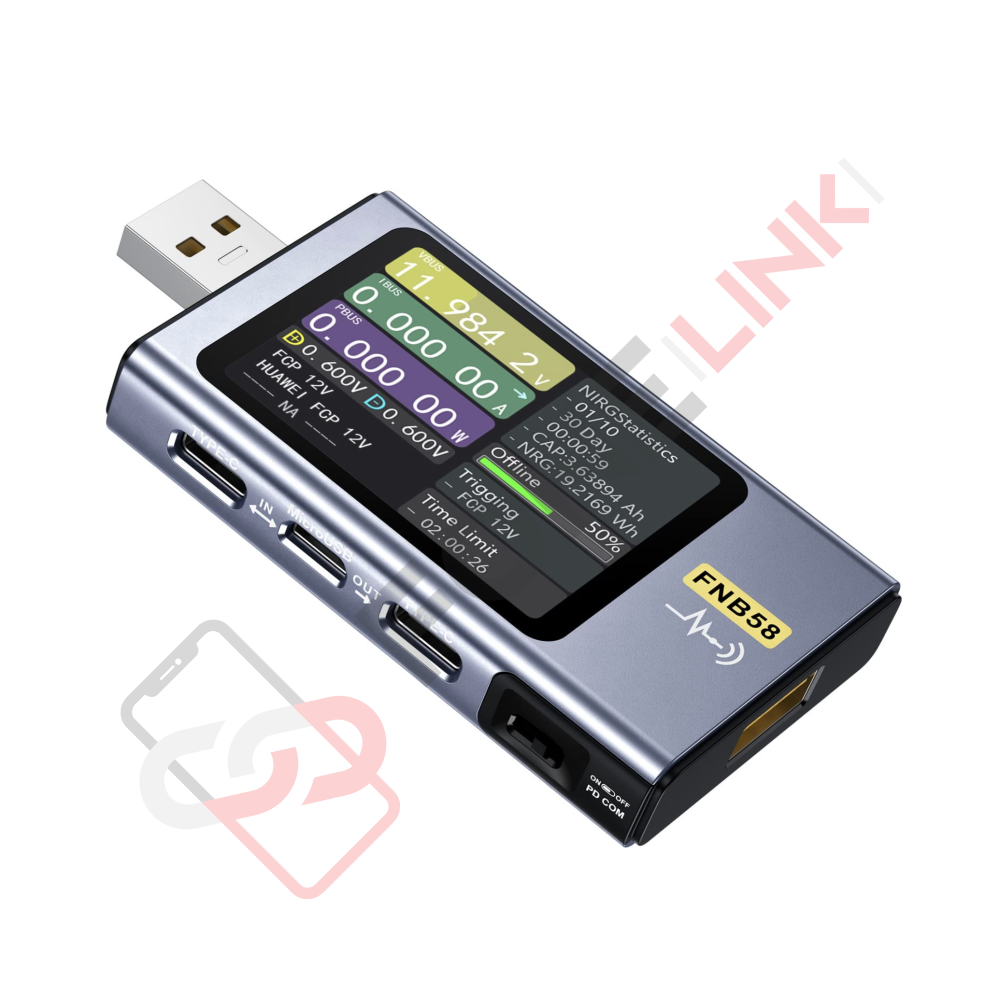

• 【Updated Designed USB Tester】FNIRSI FNB58 USB tester has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. It is a high-reliability, high-safety USB voltage andcurrent detection meter and a mobile communication terminal fast chargingtrigger. Gravity sensor, automatically switch the display direction.【Multifunction USB Digital Tester】FNB58 uses external 16-bit ADC, PD protocol physical chip. It can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks. FNB58 USB tester can monitor the voltage, current, power, resistance, capacity, temperature, D+/D- voltage etc, it can be used to test the fast charging protocol of chargers.【Fast Charge Protocol Trigger Detection】FNB58 supports trigger detection of various fast charging protocols, QC2.0/QC3.0 trigger, FCP/SCP trigger, AFC trigger, PD2.0/3.0 trigger, VOOC/WARP trigger, Super VOOC 1.0/2.0 trigger. The above protocols all support automatic monitoring. MTK-PE automatic detection. Support QC2.O->PD2.0 protocol conversion.【Parameter Detection and Recording】The highest six-digit display of voltage, current and power, the highest resolution is 0.00001 (V/A/W). 10 sets of switchable capacity, power and time statistics. 1 set of voltage and current curve records, maximum support 9 hours. Support low-speed waveform (voltage, current, D+/D-) drawing, 2sps->100sps sampling rate. Support high-speed ripple (voltage, AC coupling)drawing, up to 4M sps sampling rate.【Other detection functions】FNB58 also has many functions that other USB testers do not have. The internal resistance measurement of the wire by the differential pressure method. E-Marker Cable chip reading. DASH Cable data reading. Record of startup time. Onboard temperature measurement. PD monitor. Analog DASH cable.☆☆☆In order to respond to the environmental protection policy and reduce the waste and use of paper, FNB58 does not come with paper manuals. You can visit the official website of FNIRSI Technology on the box to download the electronic manuals.More content can also be downloaded from the official website, including subsequent product update firmware, host computer, APP, etc.
